Amflow PR Carbon

Full-Power Performance with a Removable Battery
The Amflow PR Carbon is built for riders who want full-power electric mountain bike performance with the added practicality of a removable battery. With its full-carbon frame, progressive geometry and clean integration, it is designed to feel confident on technical climbs, demanding descents and long trail days.

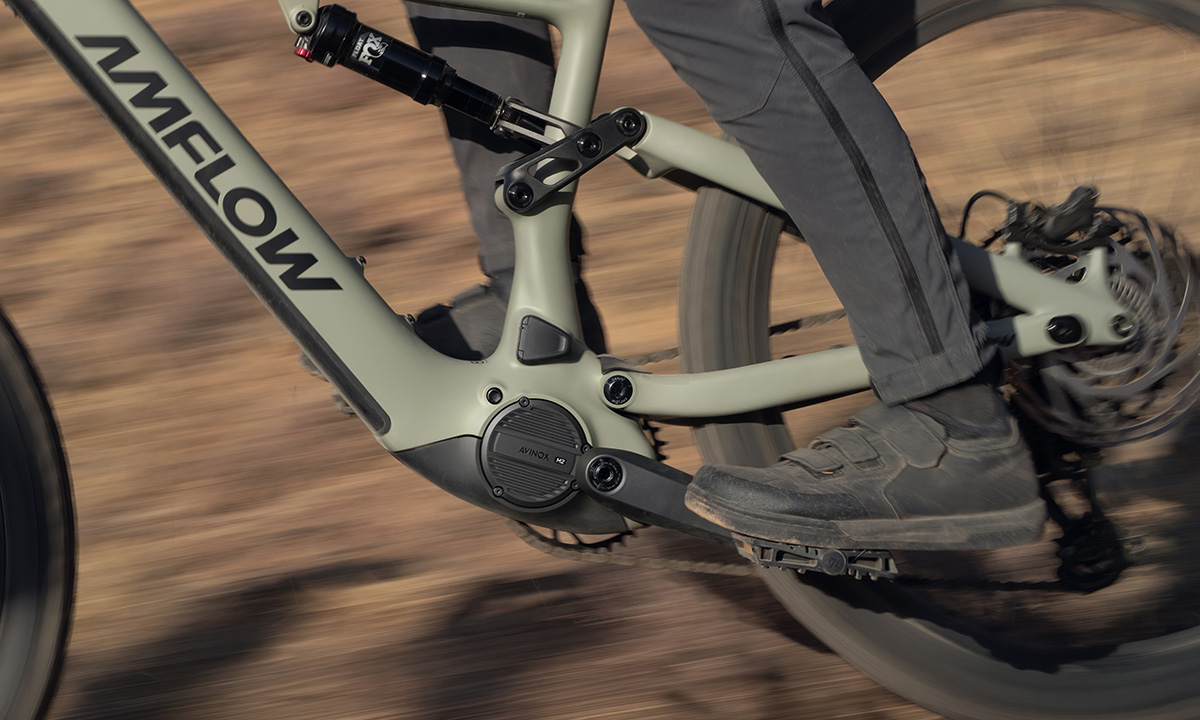

Avinox M2 Drive System
At the heart of the bike is the Avinox M2 drive unit, delivering 110Nm nominal torque and up to 125Nm peak torque. It is paired with an 800Wh removable battery, a 2-inch OLED control display and wireless controllers, giving the Amflow PR Carbon the power, range and clean cockpit feel expected from a modern full-power eMTB.

Adjustable Geometry
One of the standout features of the Amflow PR Carbon is its highly adjustable geometry. The frame offers 5 headset angle settings, 2 bottom bracket height settings and 4 chainstay length settings, giving up to 40 possible geometry configurations. The stock setup uses a mullet wheel format, while the frame is also compatible with both 27.5-inch and 29-inch rear wheel configurations.


Long Range and Flexible Charging
The removable 800Wh battery gives the PR Carbon strong range for longer rides, while also making off-bike charging far more convenient. Amflow quotes up to 158km of range under test conditions, and the bike is supplied with a 4A / 168W charger while also being compatible with the faster 12A / 508W charger for quicker charging when needed.

Trail-Ready Specification
The Amflow PR Carbon is equipped with a strong trail-focused build that matches its frame and motor. It comes with a FOX AWL HD Sport fork, FOX Float Rhythm rear shock, SRAM S1000 Eagle Transmission, SRAM AXS Pod Controller and Tektro 4-piston hydraulic disc brakes. This gives the bike a well-balanced package for riders who want capable suspension, precise shifting and dependable braking power.
Key Features
- Avinox M2 drive unit with 110Nm nominal torque and 125Nm peak torque
- 800Wh removable battery
- 2-inch Avinox OLED control display
- 4A / 168W charger
- Compatible with 12A / 508W fast charger
- 5 headset angle settings
- 2 bottom bracket height settings
- 4 chainstay length settings
- Up to 40 geometry configurations
- FOX AWL HD Sport fork with 160mm travel
- FOX Float Rhythm rear shock
- SRAM S1000 Eagle Transmission
- Tektro 4-piston hydraulic disc brakes
Amflow PR Carbon Specifications
| Category | Specification |
|---|---|
| Model | Amflow PR Carbon |
| Colour | Moss Green |
| Frame | Amflow PR Carbon Frame |
| Frame Weight | Approx. 2.9kg |
| Motor | Avinox M2 Drive Unit |
| Motor Torque | 110Nm nominal / 125Nm peak |
| Rated Power | 250W |
| Peak Power | 1100W |
| Battery | Avinox Removable Battery, 800Wh |
| Display | Avinox 2-inch OLED Control Display |
| Controllers | Avinox Wireless Controllers, right and left sides |
| Claimed Range | Up to 158km |
| Charger | Avinox Charger, 4A / 168W |
| Fast Charger Compatibility | Compatible with Avinox Fast Charger, 12A / 508W |
| Charge Time (508W Charger) | 0–80%: 1h 36min / 0–100%: 2h 25min |
| Charge Time (168W Charger) | 0–80%: 4h 38min / 0–100%: 6h 03min |
| Rear Shock | FOX Float Rhythm (MY 2027), custom tune, LSR adjustment, 210×55mm air shock |
| Fork | FOX AWL HD Sport (MY 2027), 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset |
| Rear Derailleur | SRAM S1000 Eagle Transmission Derailleur |
| Chainring | SRAM Eagle Transmission DM Chainring 38T for Avinox |
| Shifter | SRAM AXS Pod Controller |
| Cassette | SRAM XS-1270 Eagle Transmission Cassette 10-52T |
| Chain | SRAM Eagle 70 Transmission Flattop Chain |
| Power Supply | Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
| Crankset | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Brakes | Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom |
| Rotors | Tektro Sensor Rotor, 203mm, 2.3mm |
| Wheelset | Amflow XMA-30 Mullet Version |
| Front Rim | Alloy, 29in, 30mm inner width, 32H, tubeless ready |
| Rear Rim | Alloy, 27.5in, 30mm inner width, 32H, tubeless ready |
| Front Hub | Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt |
| Rear Hub | Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
| Front Tyre | Maxxis Assegai, 29.0×2.50, 3C MaxxGrip, EXO+, tubeless ready |
| Rear Tyre | Maxxis DHR II, 27.5×2.50, MaxxTerra, DD, tubeless ready |
| Handlebar | Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter |
| Handlebar Sweep | 5-degree upsweep / 9-degree backsweep |
| Grips | Amflow Enduro Grip 2 Lock-on Grips |
| Stem | Amflow Mountain Bike Split Stem, 35mm length, 35mm clamp |
| Saddle | Amflow Mountain Saddle |
| Dropper Post | Amflow Dropper Post Shim, adjustable travel 0/5/10/15/20/25mm |
| Dropper Travel | M: 190mm, L/XL: 210mm, XXL: 230mm |
| Geometry Adjustment | 5 headset angle settings, 2 bottom bracket height settings, 4 chainstay length settings |
| Rear Wheel Compatibility | Compatible with 27.5in and 29in rear wheels |
Amflow PR Carbon Geometry
| Measurement | M | L | XL | XXL |
|---|---|---|---|---|
| Reach | 452mm | 475mm | 500mm | 527mm |
| Stack Height | 626mm | 637mm | 649mm | 662mm |
| Standover Height | 782.5mm | 788.9mm | 791.5mm | 799.1mm |
| Front Center | 787.7mm | 816mm | 846.8mm | 879.9mm |
| Fork Length | 576mm | 576mm | 576mm | 576mm |
| Wheelbase | 1227.9mm | 1256.2mm | 1287mm | 1320.1mm |
| Chainstay Length | 440 / 452mm | 440 / 452mm | 440 / 452mm | 440 / 452mm |
| Bottom Bracket Drop | 10.4 / 24.5mm | 10.4 / 24.5mm | 10.4 / 24.5mm | 10.4 / 24.5mm |
| Bottom Bracket Height | 349.5mm | 349.5mm | 349.5mm | 349.5mm |
| Effective Top Tube Length | 596.5mm | 623.5mm | 652.9mm | 684.6mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Head Tube Length | 111.4mm | 123.6mm | 136.9mm | 151.3mm |
| Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| Effective Seat Tube Angle | 77° | 76.9° | 76.7° | 76.6° |
| Seat Tube Height | 405mm | 425.3mm | 445mm | 464mm |
Amflow PR Carbon Size Guide
Use the guide below as a starting point for choosing your frame size.
| Frame Size | Recommended Rider Height |
|---|---|
| M | 160–176cm |
| L | 168–183cm |
| XL | 173–189cm |
| XXL | 183–199cm |
