• Description

• Amflow PX Carbon Pro










  Full-Power Performance, Clean Carbon Build

  The Amflow PX Carbon Pro is a premium full-power eMTB built for riders who want serious trail performance with a clean, modern finish. It pairs a lightweight carbon frame with the new Avinox M2S drive system, premium suspension, wireless shifting, and highly adjustable geometry, making it a strong option for aggressive trail and all-mountain riding.

  Avinox M2S Motor

  At the centre of the bike is the new Avinox M2S motor, delivering 130Nm nominal torque, up to 150Nm max torque, and up to 1500W peak power. It is designed to give strong assistance on steep climbs and technical sections while still keeping the power delivery smooth and controlled on the trail.




  Ride Modes

  The Avinox system gives you Eco, Auto, Trail and Turbo ride modes, with each one tuned for a different riding style. Eco helps stretch battery life, Auto adjusts support in real time, Trail gives stronger all-round assistance, and Turbo delivers maximum support for demanding climbs and harder terrain. The modes can also be fine-tuned in the Avinox app.

  Adjustable Geometry

  One of the standout features of the PX Carbon Pro is its adjustable geometry. The headset starts from a 64.2° head angle and can be fine-tuned across five positions: -1°, -0.5°, 0°, +0.5° and +1°. The frame also gives you two bottom bracket height settings at 345mm and 349mm, plus four chainstay settings from 438mm to 451mm. Altogether, that gives up to 40 geometry configurations, so you can tune the bike for more stability, quicker handling, or different terrain.




  Battery and Fast Charging

  The PX Carbon Pro runs a 700Wh integrated battery and uses an Avinox 12A / 508W fast charger. Amflow says the high-capacity battery is matched with 3x super-fast charging, giving you strong range for longer rides and quicker charging between sessions.

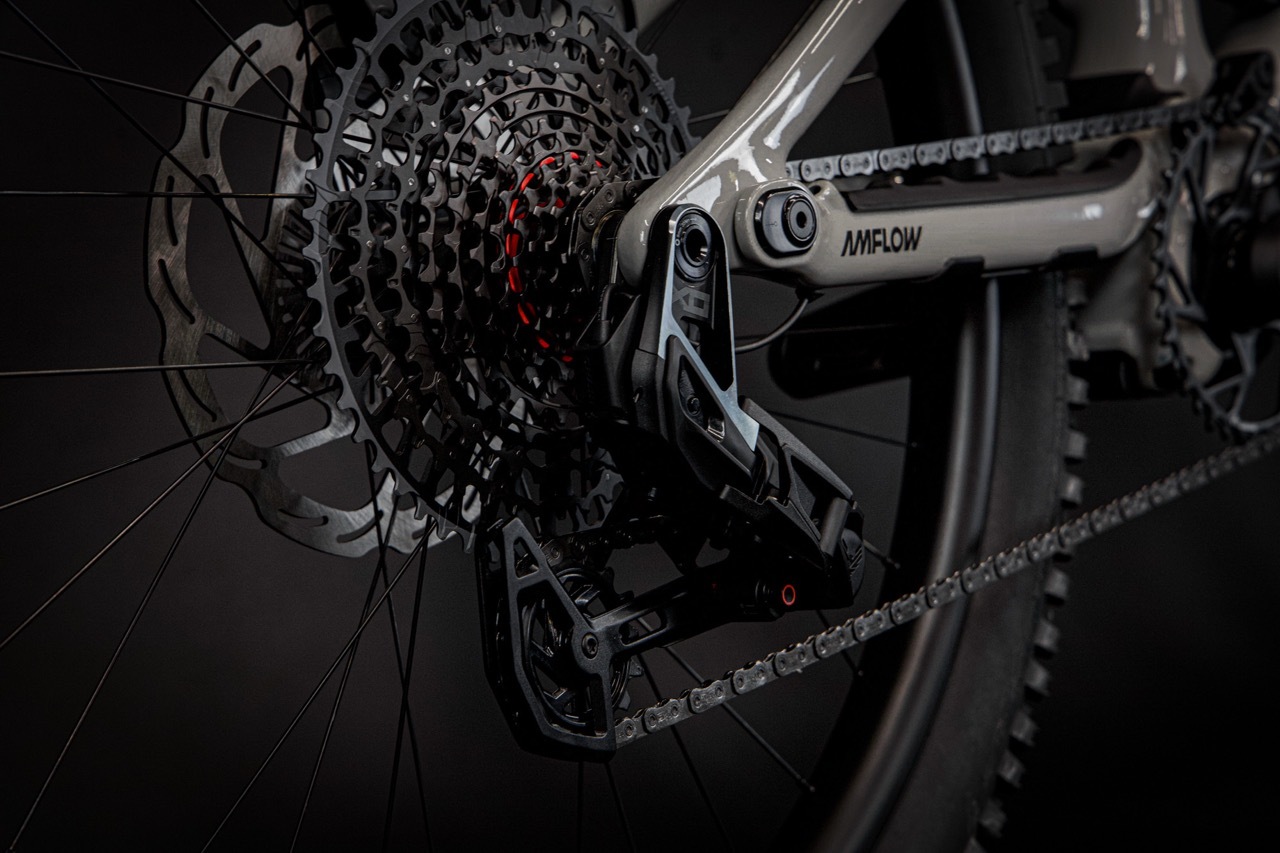

  Premium SRAM AXS Build

  To match the motor and frame, the PX Carbon Pro comes with a premium parts package including SRAM X0 Eagle Transmission, SRAM AXS Pod Rocker controls, FOX 36 Factory suspension, FOX Float X Factory rear shock, and Magura Gustav Pro brakes with 203mm rotors.







  Amflow PX Carbon Pro Specifications

  Category	Specification
  Model	Amflow PX Carbon Pro
  Colour	Moonstone Gray
  Frame	Amflow PX Carbon Pro carbon frame
  Geometry Adjustment	Up to 40 adjustable geometry configurations
  Rear Wheel Compatibility	Compatible with 27.5in and 29in rear wheels
  Motor	Avinox M2S drive unit
  Motor Torque	130Nm nominal / 150Nm max
  Display	Avinox 2in OLED control display
  Controllers	Avinox wireless controllers, left and right
  Battery	Avinox integrated 700Wh battery
  Charger	Avinox fast charger, 12A / 508W
  Rear Shock	FOX Float X Factory (MY2027), 2-position lever, custom tune, LSC and LSR adjustment, 210x55mm air shock
  Fork	FOX 36 Factory (MY2027), 160mm travel, GRIP X2 damper, HSC / LSC / HSR / LSR adjustment, 15x110mm, 44mm offset
  Rear Derailleur	SRAM X0 Eagle Transmission
  Chainring	SRAM Eagle Transmission DM 38T for Avinox
  Shifter	SRAM AXS Pod Rocker
  Cassette	SRAM XS-1295 Eagle Transmission 10-52T
  Chain	SRAM X0 Eagle Transmission chain
  Derailleur Power	Avinox M2 series electronic rear derailleur power cable (SRAM AXS extension cable)
  Crankset	Avinox SL crankset
  Crank Lengths	M/L: 155mm, XL/XXL: 160mm
  Brakes	Magura Gustav Pro hydraulic disc brakes, 4-piston calipers
  Rotors	Magura sensor rotors, 203mm, 2.5mm
  Wheelset	Amflow XMC-30 mullet wheelset
  Front Rim	Carbon, 29in, 30mm internal width, 28H, tubeless ready
  Rear Rim	Carbon, 27.5in, 30mm internal width, 32H, tubeless ready
  Spokes	SAPIM E-Light
  Front Hub	Alloy, 2 sealed bearings, 15x110mm thru-axle, 28H, J-bend, 6-bolt
  Rear Hub	Alloy, 4 sealed bearings, 12x148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls, 60T, XD
  Front Tyre	Schwalbe Magic Mary Radial, 29 x 2.5, Gravity Pro, Ultra Soft, tubeless ready
  Rear Tyre	Schwalbe Albert Radial, 27.5 x 2.5, Gravity Pro, Addix Soft, tubeless ready
  Handlebar	Amflow carbon enduro handlebar
  Handlebar Rise	40mm
  Handlebar Width	800mm
  Handlebar Clamp	35mm
  Handlebar Sweep	5° upsweep / 9° backsweep
  Grips	Amflow Enduro Grip 2 lock-on grips
  Stem	Amflow MTB split stem
  Stem Length	35mm
  Stem Clamp	35mm
  Saddle	Amflow titanium MTB saddle
  Dropper Post	Amflow dropper post with adjustable travel spacer
  Dropper Travel	M/L: 190mm, XL: 210mm, XXL: 230mm
  Dropper Adjustment	0 / 5 / 10 / 15 / 20 / 25mm

  Geometry

  Measurement	M	L	XL	XXL
  Reach	455mm	478mm	503mm	528mm
  Stack	622.1mm	632.2mm	645.9mm	659mm
  Standover	780mm	785mm	790mm	795mm
  Front Centre	793.1mm	820.9mm	852mm	883.9mm
  Fork Length	570mm	570mm	570mm	570mm
  Wheelbase	1231.3mm	1259.1mm	1290.2mm	1322.1mm
  Chainstay Length	438 / 451mm	438 / 451mm	438 / 451mm	438 / 451mm
  Bottom Bracket Drop	10.5 / 23.7mm	10.5 / 23.7mm	10.5 / 23.7mm	10.5 / 23.7mm
  Bottom Bracket Height	345.5mm	345.5mm	345.5mm	345.5mm
  Effective Top Tube	586.9mm	619.7mm	642.8mm	672.2mm
  Head Tube Angle	64.2°	64.2°	64.2°	64.2°
  Head Tube Length	109mm	120mm	135mm	150mm
  Actual Seat Tube Angle	72°	72°	72°	72°
  Effective Seat Tube Angle	78°	78°	78°	77.7°
  Seat Tube Length	415mm	427mm	447mm	466mm

  Geometry Adjustment

  Adjustment	Options
  Headset Angle Adjustment	5 settings
  Bottom Bracket Height Adjustment	2 settings
  Chainstay Length Adjustment	4 settings
  Total Geometry Configurations	Up to 40

  Included Accessories

  Item	Included
  Front Light	Avinox bike front light
  Bottle Cage	Amflow bottle cage
  Geometry Parts	Three geometry adjustment systems (0.5° / 1° headset cups, chainstay flip-chip)
  IoT SIM	Nano SIM
  Dropper Reducers	5 / 10mm travel reducer spacers
  Rear Light	Included
  Torque Wrench	Included
  Frame Protection	Clear frame protection film
  Shock Pump	Included
  Quick Start Guide	Included

• Size Guide

• Amflow PX Carbon Pro Size Guide

  Use the guide below as a starting point for choosing your frame size.

  Frame Size	Recommended Rider Height
  M	162–178cm
  L	170–185cm
  XL	175–191cm
  XXL	185–201cm

  Between sizes? Size down for a lighter, more playful feel or a more upright riding position. Size up if you want more stability or if your arm span is longer than your height.
