Haibike ALLMTN CF 9 2026
The Haibike ALLMTN CF 9 is a powerful and versatile carbon electric mountain bike built for riders who want one bike capable of tackling technical climbs, fast trail riding and demanding descents.
Combining a Bosch Performance Line CX motor with an 800Wh battery, 160mm front suspension, 150mm rear travel and an agile mixed-wheel setup, the ALLMTN CF 9 delivers the control, range and capability needed for serious all-mountain adventures.
This bike has been upgraded with a Bosch Kiox 400C colour display and powerful Magura MT5 four-piston hydraulic disc brakes, providing a premium cockpit and confident braking performance on demanding terrain.
```Key Features
```- Lightweight Haibike carbon full-suspension frame
- Bosch Performance Line CX Smart System motor
- Large-capacity Bosch PowerTube 800Wh battery
- Compatible with the optional Bosch PowerMore 250Wh
- Upgraded Bosch Kiox 400C colour display
- 160mm RockShox Lyrik suspension fork
- 150mm rear suspension travel
- RockShox Deluxe Select+ rear shock
- SRAM S1000 Eagle AXS wireless drivetrain
- Magura MT5 four-piston hydraulic brakes
- 203mm brake rotors front and rear
- 29-inch front and 27.5-inch rear wheels
Power and Range for Big Days

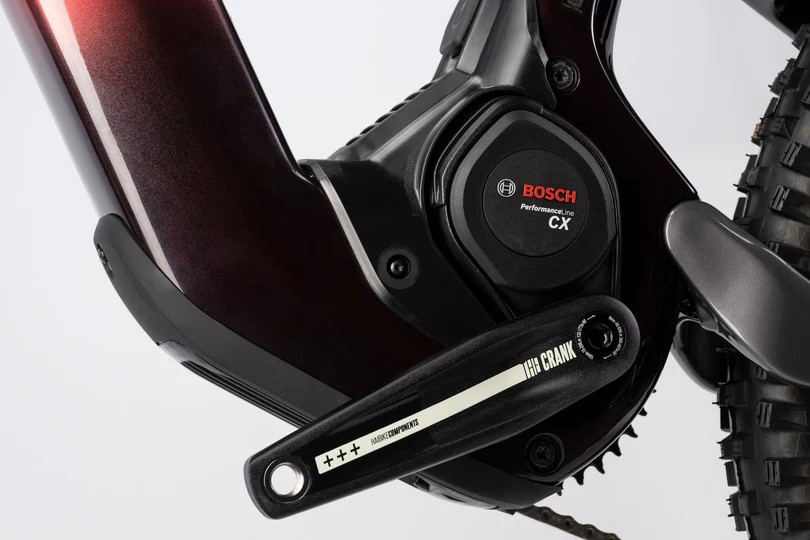

```The Bosch Performance Line CX Smart System provides smooth, responsive and powerful assistance for technical climbs, challenging trails and long days in the hills.
The large-capacity Bosch PowerTube 800Wh battery provides the range needed for longer rides, repeated descents and full days exploring demanding terrain.
An optional Bosch PowerMore 250Wh range extender can be fitted when additional battery capacity is required for especially long adventures.

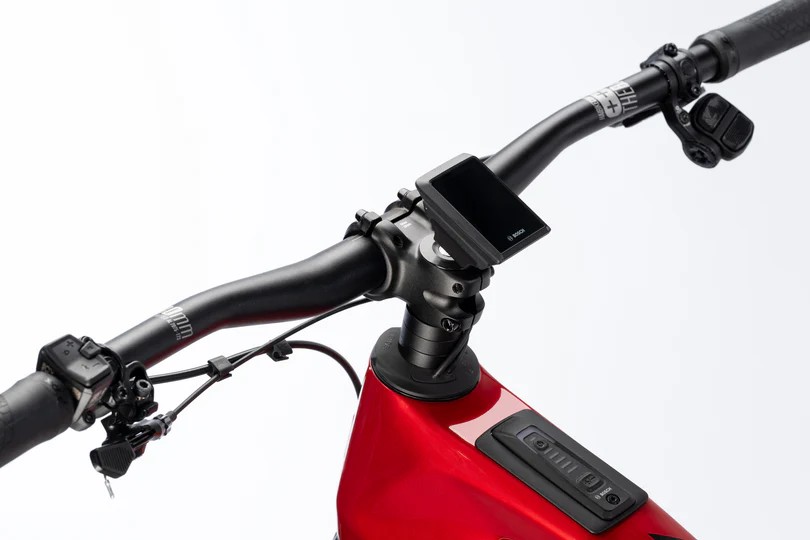

The upgraded Bosch Kiox 400C provides a large, clear colour display with detailed ride information, navigation support and access to connected Bosch Smart System features.
Haibike has positioned the motor within the carbon frame to support efficient heat management during sustained climbs and demanding rides.
The carbon frame combines strength, stiffness and reduced weight, helping the bike feel precise and responsive despite its powerful full-size motor and battery.
Premium Upgrades
Enhanced control, braking and ride information.
Magura MT5 Brakes
Powerful four-piston braking for demanding e-MTB riding.
Balanced All-Mountain Suspension
```Up front, the RockShox Lyrik Base Rush RC fork provides 160mm of controlled travel to absorb rock gardens, roots, drops and heavy impacts. Its sturdy chassis helps maintain steering precision when the trail becomes steep or rough.
The RockShox Deluxe Select+ rear shock controls 150mm of rear-wheel travel. Haibike's suspension kinematics are designed to provide climbing support while remaining active and composed through rough downhill terrain.
```Agile Mixed-Wheel Setup
```The ALLMTN CF 9 uses a 29-inch front wheel and a more compact 27.5-inch rear wheel. The larger front wheel improves rollover and stability through rough sections, while the smaller rear wheel helps the bike change direction quickly and provides additional clearance on steep descents.
This mixed-wheel arrangement gives the bike a useful combination of high-speed confidence, cornering agility and traction on technical climbs.

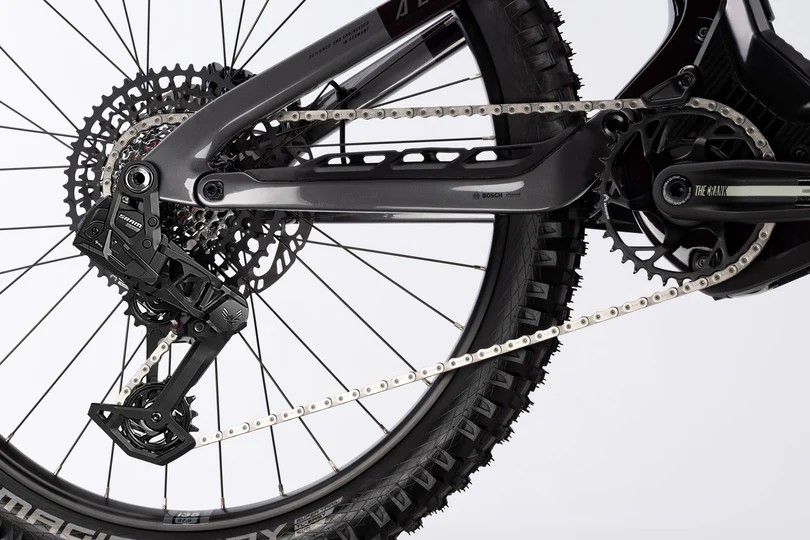

```Wireless SRAM Eagle Transmission
```SRAM's S1000 Eagle AXS T-Type rear derailleur provides precise electronic 12-speed shifting without a traditional gear cable. The robust transmission is designed to shift smoothly under load, making it particularly well suited to the high torque and demanding use associated with full-power electric mountain bikes.
A compact SRAM AXS Pod Controller keeps shifting simple and intuitive, while the SRAM Eagle T-Type drivetrain provides dependable durability for demanding trail use.
```Technical Specification
```| Model | Haibike ALLMTN CF 9 2026 |
|---|---|
| Frame | Haibike carbon full-suspension frame with integrated Bosch PowerTube battery |
| Available Sizes | Small, Medium, Large and Extra Large |
| Wheel Setup | 29-inch front and 27.5-inch rear |
| Motor | Bosch Performance Line CX Smart System, 250W, with assistance up to 15.5mph |
| Battery | Bosch PowerTube 800Wh |
| Range Extender | Compatible with the optional Bosch PowerMore 250Wh |
| Charger | Bosch 4A charger |
| Display | Upgraded Bosch Kiox 400C colour display with Bosch Smart System connectivity |
| Fork | RockShox Lyrik Base Rush RC, DebonAir+, 160mm travel and 44mm offset |
| Rear Shock | RockShox Deluxe Select+ RT, DebonAir+, 230 x 60mm |
| Rear Travel | 150mm |
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type wireless, 12-speed |
| Shifter | SRAM AXS Pod Controller |
| Chain | SRAM Eagle T-Type, 12-speed |
| Front Brake | Magura MT5 four-piston hydraulic disc brake with 203mm rotor |
| Rear Brake | Magura MT5 four-piston hydraulic disc brake with 203mm rotor |
| Rims | WTB ST i30 TCS 2.0, tubeless compatible |
| Front Tyre | Schwalbe Magic Mary, Super Trail, EVO and ADDIX Soft |
| Handlebar | Haibike TheBar++, 780mm wide and 31.8mm diameter |
| Dropper Post | Limotec A4H internal dropper post, 34.9mm diameter |
| Saddle | Selle Royal Vivo |
| Maximum Load | 135kg maximum permitted total load |
Prepared by Midlands Cycles
```Every bike is fully checked and prepared by our workshop before collection or dispatch. Suspension settings can be adjusted to suit the rider's weight and riding style, helping ensure the bike is ready to ride from day one.
```
