• Description

• • Avinox M2S
  • 800Wh Battery
  • 170mm Front Travel
  • 165mm Rear Travel
  • Mullet Setup
  • Carbon Frame

  Mondraker Zendit RR

  The Mondraker Zendit RR is a flagship carbon enduro e-MTB built for aggressive riding, steep terrain and high-speed control. With Avinox M2S power, 165mm rear travel, a mixed-wheel setup and premium suspension, it is designed to deliver serious descending capability without losing climbing efficiency or all-day usability.

  Avinox M2S Power

  The Zendit RR runs the Avinox M2S drive system with strong torque, high peak output and an 800Wh integrated battery, giving it the kind of full-power support that suits steep climbs, technical riding and long enduro days.

  Carbon Enduro Chassis

  Mondraker’s Stealth Air full-carbon frame is paired with updated ZERO suspension kinematics, 165mm of rear travel and a 170mm fork for a composed, planted ride on rough and demanding terrain.

  Mullet as Standard

  The stock 29in front and 27.5in rear wheel setup gives the Zendit RR a balanced feel, combining rollover speed with quicker handling. Riders can also switch to a 29in rear using the lower flip-chip.

  Factory-Level Build

  High-end Fox suspension, SRAM T-Type wireless shifting, DT Swiss Hybrid wheels and SRAM Maven brakes give the Zendit RR a premium build that matches its aggressive enduro intent.



  Product Description

  Flagship Carbon Enduro e-MTB

  The Mondraker Zendit RR is built for riders who want full-power enduro performance with a premium carbon frame and a modern, aggressive ride feel. It combines Mondraker’s Stealth Air carbon construction, updated ZERO suspension system and Forward Geometry with a mullet wheel setup as standard, creating a bike that feels fast, stable and ready for steep technical terrain.

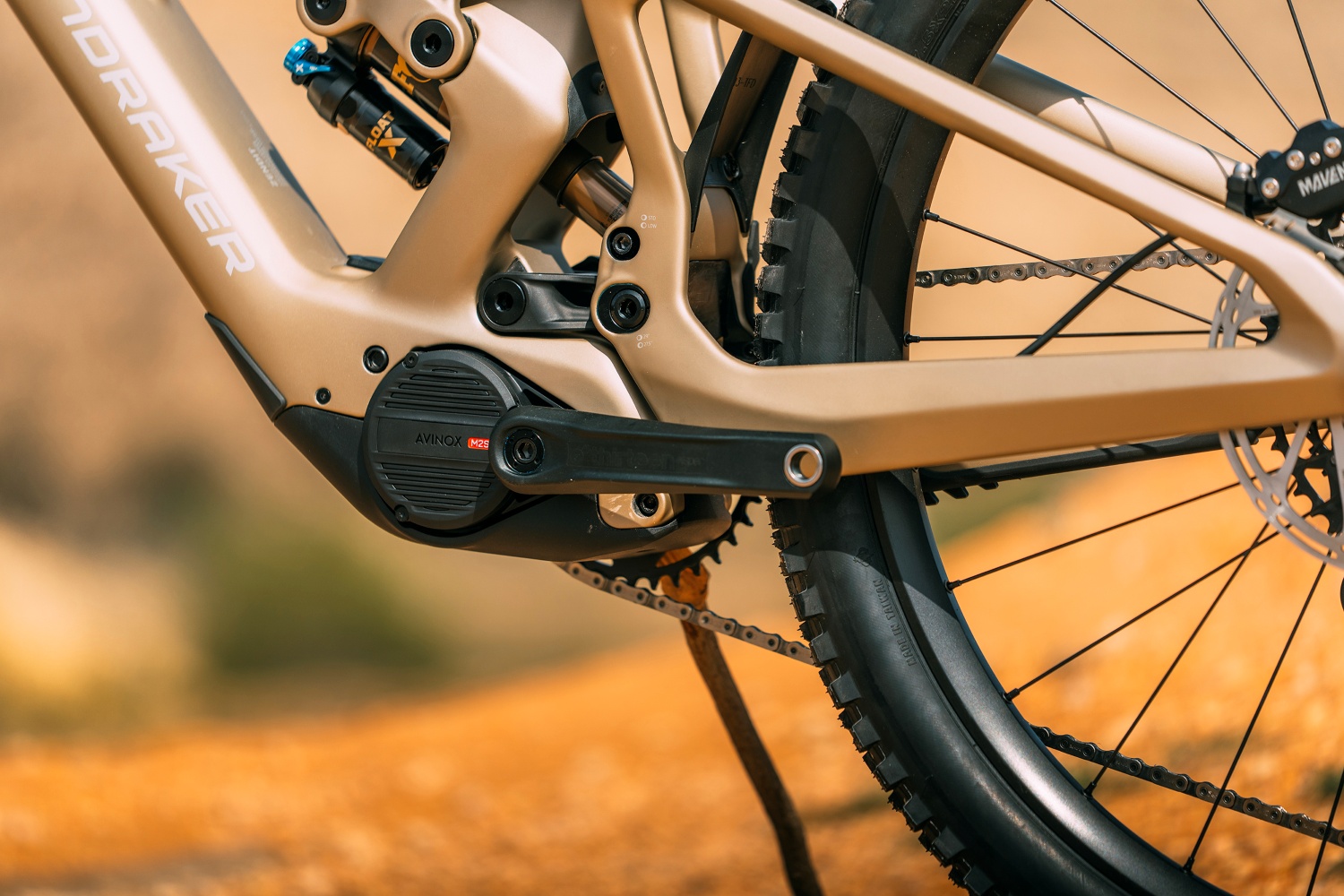

  Powerful Avinox M2S Drive System

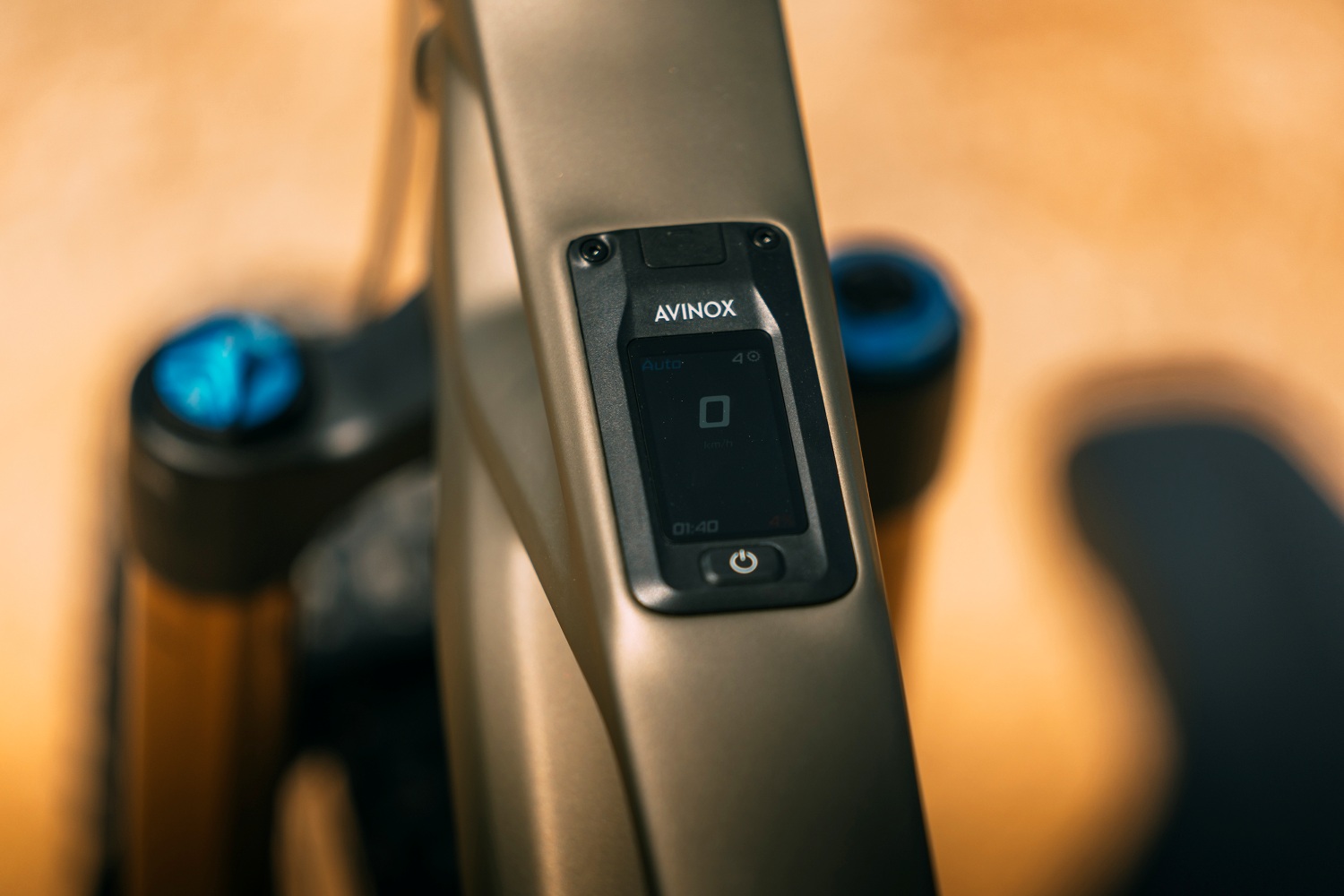

  At the heart of the Zendit RR is the Avinox M2S motor, paired with an 800Wh integrated battery, DP100 display and BC100 wireless controller. The result is a clean, highly integrated cockpit and a serious full-power e-bike system designed for riders who want strong support on climbs and confident control on harder trails.

  Suspension and Handling for Hard Riding

  With 170mm travel up front and 165mm at the rear, the Zendit RR is designed for aggressive descending without losing traction or support when the trail gets rough. Mondraker also uses proportional chainstay lengths by frame size and gives riders the option to convert to a 29in rear wheel using the lower flip-chip, all while keeping the bike’s core handling character intact.

  Premium Build for Serious Trail Use

  The Fox Factory suspension package, SRAM T-Type wireless drivetrain, SRAM Maven brakes and DT Swiss Hybrid wheels make the Zendit RR a premium enduro e-MTB for riders who want reliable high-speed control, strong braking power and a clean, modern build from top to bottom.







  Spec List

  • Frame: Zendit Stealth Air full carbon
  • Rear Travel: 165mm
  • Fork Travel: 170mm
  • Wheel Setup: Mullet as standard
  • Motor: Avinox M2S
  • Torque: 130Nm / 150Nm in Boost
  • Peak Power: 1300W
  • Battery: 800Wh integrated
  • Display: Avinox DP100
  • Controller: Avinox BC100 wireless controller
  • Fork: Fox 38 Float GRIP X2 Factory Kashima, 170mm
  • Rear Shock: Fox Float X Factory Kashima Evol LV, 205x65mm
  • Drivetrain: SRAM S1000 Eagle AXS T-Type, 12-speed
  • Brakes: SRAM Maven Base, 4-piston
  • Rotors: 200mm front / rear
  • Rims: DT Swiss Hybrid H 1900 SPLINE, 30mm internal
  • Front Tyre: Maxxis Assegai 29x2.5WT, 3C MaxxGrip, EXO+
  • Rear Tyre: Maxxis Minion DHR II 27.5x2.5WT, MaxxTerra, DD
  • Crank Length: 155mm all sizes
  • Weight: 22.8kg
  • Sizes: S, M, M/L, L, XL
  • 29er Rear Conversion: Supported via lower flip-chip

  Geometry

  Measurement	S	M	M/L	L	XL
  Seat Tube Length	380mm	410mm	435mm	460mm	490mm
  Top Tube Length	586mm	606mm	628mm	650mm	672mm
  Bottom Bracket Drop	6mm	6mm	6mm	6mm	6mm
  Bottom Bracket Height	345mm	345mm	345mm	345mm	345mm
  Chainstay Length	450mm	450mm	450mm	455mm	455mm
  Seat Tube Angle	73.5°	73.5°	73.5°	73.5°	73.5°
  Effective Seat Tube Angle	77°	77°	77°	77°	77°
  Head Tube Angle	63.5°	63.5°	63.5°	63.5°	63.5°
  Fork Offset	44mm	44mm	44mm	44mm	44mm
  Wheelbase	1241mm	1261mm	1286mm	1315mm	1339mm
  Head Tube Length	110mm	110mm	120mm	130mm	140mm
  Reach	440mm	460mm	480mm	500mm	520mm
  Stack	631mm	631mm	640mm	649mm	658mm

  Geometry shown above is the standard position. Mondraker also offers a low setting, and switching to a 29in rear wheel adds 7mm to the chainstay length.

  Size Guide

  Frame Size	Approx Rider Height
  S	Under 165cm
  M	165–175cm
  M/L	170–185cm
  L	180–190cm
  XL	190–195cm

  Fit note: treat this as a rough starting point only. Mondraker states sizing is an estimation, and personal preference plus riding style can affect the best frame choice.
